Peplink 5G Products
The Peplink MAX BR1 PRO 5G-is integrated with the new generation multi-core CPU ensuring delivery of gigabit speeds. Achieving 8 times faster than the original BR1 classic.
The BR1 PRO 5G sets the standard for Peplink’s 5G routers. Featuring 5G, dual band WiFi 6, and active GPS, all while being 25% slimmer than its predecessor the BR1 Classic. This mighty router provides Supercharged Connectivity wherever you go.
I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
| Ethernet WAN Ports | 1 (2.5GE) |
| Ethernet LAN Ports2 | 2 (GE) |
| Embedded 5G Modem | 1 |
| Redundant SIM Slots | Yes (( Mini-SIM (2FF)) |
| Wi-Fi WAN | Wi-Fi AP | Yes |
| Recommended Users | 1-150 |
| Router Throughput | 1Gbps |
| PepVPN | Yes |
| SpeedFusion Hot Failover | Yes |
| SpeedFusion WAN Smoothing | Yes |
| Number of PepVPN SpeedFusion Peers | 2/5! |
| PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) | 400 Mbps / 200 Mbps |
| 802.1q VLANs Supported | 16 |
| Drop-In Mode | Yes |
| IP Passthrough | Yes |
| High Availability | Yes |
| WAN as LAN | Yes |
| Web Blocking | Yes |
| AC Adapter | AC Input 100V-240V DC Output 12V, 2A |
| Power Input | Terminal Block | DC 10V-30V, 2A |
| Power Consumption | Max.: 19W, Typical: 8W |
| Dimensions | 1.15 x 5.78 x 5.08 inches | 29.3 x 146.8 x 129 mm |
| Weight | 1.5 pounds | 680 grams |
| Operating Temperature | –40° – 149°F | -40° – 65°C |
| Certifications | -FCC, CE, RoHS, E-Mark -EN 61373 Shock and Vibration Resistance -EN 50155 Railway Applications – Electronic Equipment used on Rolling Stock -EN 61000 Electromagnetic Compatibility-EN45545-2 Railway applications – Fire protection |
| Warranty | 1-Year Limited Warranty |
Poynting MIMO-4 17
*Our Recommended Antenna.
- 7-in-1 High performance multi frequency automotive antenna
- Ultra-wideband coverage from 617 to 6000 MHz for cellular
- 4×4 MIMO LTE/5G, 2×2 MIMO Wi-Fi & GPS/GLONASS
- Robust and weather resistant antenna with an IP69K rating
- Ideal for transportation and marine implementation
- Multi mounting options for ease of installation
Poynting OMNI 414
- Ultra-wideband, omni-directional marine & coastal antenna
- 4×4 MIMO capability for improved performance
- Covers contemporary LTE/5G bands from 617 to 3800 MHz
- UV and saltwater protected for marine and coastal conditions
- Robust and all-weather proof for harsh conditions at sea (IP 68)
- Various 316 stainless steel mounting brackets available optionally
2x Poynting OMNI 402
- High performance wideband omni-directional marine antenna
- 2×2 MIMO capability for improved performance
- Easy mounting with feed through 1-inch marine standard adapter bracket included
- Robust and all-weather proof for harsh conditions at sea (IP 68)
- Various 316 stainless steel mounting brackets available optionally
- UV and saltwater protected against tempestuous weather conditions
Peplink Mobility 42G
- 7-in-1 High performance antenna
- Ultra-wideband coverage from 600 to 6000 MHz supporting LTE & 5G
- 4×4 MIMO LTE/5G, 2×2 MIMO Wi-Fi & GPS
- Durable and weather resistant IP68 rating (available in black or white)
- Ideal for transport and marine implementation
- Multi mounting options for ease of installation
The Peplink MAX BR2 PRO 5G is a step up from its brother the BR1 PRO, Now with dual 5G modems and support for Starlink you can reach superfast speeds on a more reliable connection.
The BR2 PRO boasts Dual 5G Cellular Modems, plus with 2.5Gbps Ethernet WAN and Starlink support you can reach a whole new level of speed and reliability. To make use of all this power the BR2 PRO features Dual Band WiFi 6 along with up to 5 2.5Gbps LAN Ethernet ports to give all your devices the Unbreakable Connectivity they need.
| Ethernet WAN Ports | 2 (2.5GE) |
| Ethernet LAN Ports2 | 4 (GE) |
| Embedded 5G Modem | 2 |
| Redundant SIM Slots | Yes (( Mini-SIM (2FF)) |
| Wi-Fi WAN | Wi-Fi AP | Yes |
| Recommended Users | 1-150 |
| Router Throughput | 1Gbps |
| PepVPN | Yes |
| SpeedFusion Hot Failover | Yes |
| SpeedFusion WAN Smoothing | Yes |
| Number of PepVPN SpeedFusion Peers | 2/5! |
| PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) | 400 Mbps / 200 Mbps |
| 802.1q VLANs Supported | 16 |
| Drop-In Mode | Yes |
| IP Passthrough | Yes |
| High Availability | Yes |
| WAN as LAN | Yes |
| Web Blocking | Yes |
| AC Adapter | AC Input 100V-240V DC Output 12V, 2A |
| Power Input | Terminal Block | DC 10V-30V, 2A |
| Power Consumption | Max.: 30W, Typical: 12W |
| Dimensions | 8.58 x 7.68 x 1.61 inches | 218 x 195 x 29.5 mm |
| Weight | 2.42 pounds | 1.1 kg |
| Operating Temperature | –40° – 149°F | -40° – 65°C |
| Certifications | -FCC, CE, RoHS, E-Mark -EN 61373 Shock and Vibration Resistance -EN 50155 Railway Applications – Electronic Equipment used on Rolling Stock -EN 61000 Electromagnetic Compatibility |
| Warranty | 1-Year Limited Warranty |
RIPPLE-8
*Our Recommended Antenna.
- High performance, omni-directional marine & coastal antenna
- Up to 8 x 8 MIMO capability for improved performance
- Covers contemporary 5G/LTE band from 617 to 7200 MHz
- Innovative heat sink design for improved temperature regulation
- UV and saltwater protected for marine and coastal applications
- IP65 weather/dust resistant enclosure
SWIRL-8
*New
- High performance, omni-directional Maritime & Mobility Antenna
- Up to 8 x 8 MIMO capability for improved performance
- Covers contemporary 5G/LTE band from 617 to 6000 MHz
- Innovative heat sink design for improved temperature regulation
- UV and saltwater protected for marine and coastal applications
- IP69K weather/dust resistant enclosure
2x OMNI-904
- High performance, omni-directional Maritime & Mobility Antenna
- Up to 8 x 8 MIMO capability for improved performance
- Covers contemporary 5G/LTE band from 617 to 6000 MHz
- Innovative heat sink design for improved temperature regulation
- UV and saltwater protected for marine and coastal applications
- IP69K weather/dust resistant enclosure
With the rise of 5G technology, the demand for high-speed internet has never been greater. The Peplink B-One 5G Router rises to the occasion, offering an exceptional 5G experience that transforms the way you connect and communicate. Say goodbye to slow, unreliable internet connections and embrace the future of connectivity with this advanced router.
What sets the Peplink B-One 5G Router apart is its seamless integration with Starlink, a game-changing satellite internet service. By combining the power of 5G with the reliability of Starlink, this router opens up a world of possibilities, allowing you to stay connected in even the most remote locations.
| Ethernet WAN Ports | 2 (GE) |
| Ethernet LAN Ports2 | 4 (GE) |
| Embedded 5G Modem | 1 |
| Redundant SIM Slots | Yes (( Mini-SIM (2FF)) |
| Wi-Fi WAN | Wi-Fi AP | Yes |
| Recommended Users | 1-150 |
| Router Throughput | 1Gbps |
| PepVPN | Yes |
| SpeedFusion Hot Failover | Yes |
| SpeedFusion WAN Smoothing | Yes |
| Number of PepVPN SpeedFusion Peers | 2/5! |
| PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) | 400 Mbps / 200 Mbps |
| 802.1q VLANs Supported | 16 |
| Drop-In Mode | Yes |
| IP Passthrough | Yes |
| High Availability | Yes |
| WAN as LAN | Yes |
| Web Blocking | Yes |
| AC Adapter | AC Input 100V-240V DC Output 12V, 2A |
| Power Input | Terminal Block | DC 10V-30V, 2A |
| Power Consumption | Max.: 19W, Typical: 7W |
| Dimensions | 10.31 x 6.33 x 1.31 inches | 262 x 161 x 33.5 mm |
| Weight | 1.7 pounds | 756 grams |
| Operating Temperature | –40° – 113°F | -40° – 45°C |
| Certifications | -FCC, CE, RoHS |
| Warranty | 1-Year Limited Warranty |
Peplink Mobility 40G
*Our Recommended Antenna.
- 5-in-1 High performance antenna
- Ultra-wideband coverage from 600 to 6000 MHz supporting LTE & 5G
- 4×4 MIMO LTE/5G & GPS
- Durable and weather resistant IP68 rating (available in black or white)
- Ideal for static or marine implementation
- Multi mounting options for ease of installation
Poynting MIMO-4 4
- 4-in-1 High performance multi-frequency automotive antenna
- Ultra-wideband coverage from 617 to 6000 MHz for cellular
- 4×4 MIMO LTE/5G
- Robust and weather resistant antenna with an IP69K rating
- Ideal for transportation and marine implementation
- Multi mounting options for easy installation
The new Transit Pro E features superfast 5G and WiFi 6 technology. Improving greatly on the previous Transit Pro Duo, this router features Gigabit speeds with 4x GE LAN ports (1 optionally acting as WAN). Plus featuring POE 802.3at output to power any APs, cameras, or other network equipment you need.
The Transit Pro E also features built in Edge Computing, with 8GB of storage to deploy docker based applications to your network.
| Ethernet WAN Ports | 1 (GE) |
| Ethernet LAN Ports2 | 4 (GE) |
| Embedded 5G Modem | 1 |
| Redundant SIM Slots | Yes (( Mini-SIM (2FF)) |
| Wi-Fi WAN | Wi-Fi AP | Yes (WiFi 6) |
| Recommended Users | 25-150 |
| Router Throughput | 1Gbps |
| PepVPN | Yes |
| SpeedFusion Hot Failover | Yes |
| SpeedFusion WAN Smoothing | Yes |
| Number of PepVPN SpeedFusion Peers | 2/5 |
| PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) | 400 Mbps / 200 Mbps |
| 802.1q VLANs Supported | 16 |
| Drop-In Mode | Yes |
| IP Passthrough | Yes |
| High Availability | Yes |
| WAN as LAN | Yes |
| Web Blocking | Yes |
| AC Adapter | AC Input 100V-240V DC Output 12V, 2A |
| Power Input | Power Port | 12V – 56V DC |
| Power Input | Terminal Block | DC 12V-56V, 2A |
| Power Consumption | Max.: 19W, Typical: 12W |
| Dimensions | 6.3 x 4.0 x 1.7 inches | 160 x 101 x 43.5 mm |
| Weight | 2.1 pounds | 900 grams |
| Operating Temperature | -40° to 158°F | -40° to 70°C |
| Certifications | -CE, RoHS, RCM, UKCA |
| Warranty | 1-Year Limited Warranty |
Poynting MIMO-4 17
*Our Recommended Antenna.
- 7-in-1 High performance multi frequency automotive antenna
- Ultra-wideband coverage from 617 to 6000 MHz for cellular
- 4×4 MIMO LTE/5G, 2×2 MIMO Wi-Fi & GPS/GLONASS
- Robust and weather resistant antenna with an IP69K rating
- Ideal for transportation and marine implementation
- Multi mounting options for ease of installation
Poynting OMNI 414
- Ultra-wideband, omni-directional marine & coastal antenna
- 4×4 MIMO capability for improved performance
- Covers contemporary LTE/5G bands from 617 to 3800 MHz
- UV and saltwater protected for marine and coastal conditions
- Robust and all-weather proof for harsh conditions at sea (IP 68)
- Various 316 stainless steel mounting brackets available optionally
Peplink Mobility 42G
- 7-in-1 High performance antenna
- Ultra-wideband coverage from 600 to 6000 MHz supporting LTE & 5G
- 4×4 MIMO LTE/5G, 2×2 MIMO Wi-Fi & GPS
- Durable and weather resistant IP68 rating (available in black or white)
- Ideal for transport and marine implementation
- Multi mounting options for ease of installation
Peplink Slim 40G
- 5-in-1 High performance antenna
- Ultra-wideband coverage from 600 to 6000 MHz supporting LTE & 5G
- 4×4 MIMO LTE/5G & GPS
- Slim low profile design to fit in any environment
- IP55 rating ideal for land mobile installations
- Multi mounting options for ease of installation

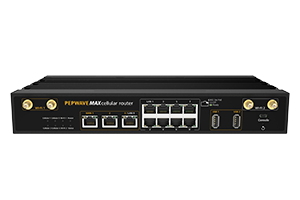

The HD2/ HD4 MBX 5G is capable of combining the bandwidth of 2 or 4 5G connections into an unbreakable, superfast connection. The HD4 MBX supports up to 8 SIM cards, with room for another 8 with the optional SIM Injector. With up to 16 cellular providers to connect to, spotty coverage will simply not be a problem.
2 USB WAN ports allow you to connect 2 MAX Adapter 5G’s bringing your total up to a whopping 6 Cellular 5G Modems with redundant backup SIM slots for Unbreakable Connectivity.
| Ethernet WAN Ports | 3 (GE) |
| Ethernet LAN Ports2 | 9 (GE) |
| Embedded 5G Modem | 2/4 |
| Redundant SIM Slots | Yes (( Mini-SIM (2FF)) |
| Wi-Fi WAN | Wi-Fi AP | Yes |
| Recommended Users | 50-500 |
| Router Throughput | 2.5 Gbps |
| PepVPN | Yes |
| SpeedFusion Hot Failover | Yes |
| SpeedFusion WAN Smoothing | Yes |
| Number of PepVPN SpeedFusion Peers | 3/20! |
| PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) | 600 Mbps / 500 Mbps |
| 802.1q VLANs Supported | 16 |
| Drop-In Mode | Yes |
| IP Passthrough | Yes |
| High Availability | Yes |
| WAN as LAN | Yes |
| Web Blocking | Yes |
| Ignition Sensing | Yes |
| Power Output | Up to 8x 802.3at PoE Outputs |
| AC Adapter | AC Input 100V-240V DC Output 12V, 2A |
| Power Input | Terminal Block | DC 10V-30V, 2A |
| Power Consumption | Max.: 55W |
| Dimensions | 1.7 x 11.5 x 7.0 inches | 43 x 292 x 177 mm |
| Weight | 7.28 pounds | 3.3 kg |
| Operating Temperature | –40° – 149°F | -40° – 65°C |
| Certifications | -FCC, CE, RoHS, E-Mark, PTCRB -EN 61373 Shock and Vibration Resistance -EN 50155 Railway Applications – Electronic Equipment used on Rolling Stock -EN 61000 Electromagnetic Compatibility |
| Warranty | 1-Year Limited Warranty |
RIPPLE-16
*Our Recommended Antenna.
- High performance, omni-directional marine & coastal antenna
- Up to 16 x 16 MIMO capability for improved performance
- Covers contemporary 5G/LTE band from 617 to 7200 MHz
- Innovative heat sink design for improved temperature regulation
- UV and saltwater protected for marine and coastal applications
- IP65 weather/dust resistant enclosure
WaveHunter
- Antenna enclosure with high performance antennas
- 24×24 MIMO antennas guarantee the best performance in any circumstances
- New advanced metamaterial technology
- Exceptional high gain performance over the main 4G/5G bands
- Cross-polarised antennas for improved performance
- IP65 weather/dust resistant enclosure
2x OMNI-904
- High performance, omni-directional Maritime & Mobility Antenna
- Up to 8 x 8 MIMO capability for improved performance
- Covers contemporary 5G/LTE band from 617 to 6000 MHz
- Innovative heat sink design for improved temperature regulation
- UV and saltwater protected for marine and coastal applications
- IP69K weather/dust resistant enclosure
Peplink SIM Injector Mini
*Recommended Accessory.
- Integrate up to 8 additional SIMs into your network
- easy access for swapping SIMs on the go
- Easy to power with either DC or POE 802.3at
Experience superfast 5G connectivity with the Peplink BR1 Mini 5G router, the affordable and reliable solution for your networking needs. As the baby brother of the BR1 PRO 5G, this compact yet powerful router is designed to deliver seamless connectivity for IoT, industrial, and mobile applications.
With its compact size, the BR1 Mini 5G is ideal for deployments where space is limited. It’s easy to install in vehicles, kiosks, and other remote locations, providing a cost-effective way to leverage the power of 5G technology. The router’s rugged design ensures durability, making it suitable for challenging environments and outdoor use.
| Ethernet WAN Ports | 1 (GE) |
| Ethernet LAN Ports2 | 2 (GE) |
| Embedded 5G Modem | 1 |
| Redundant SIM Slots | Yes (( Mini-SIM (2FF)) |
| Wi-Fi WAN | Wi-Fi AP | No |
| Recommended Users | 1-60 |
| Router Throughput | 300 Mbps |
| PepVPN | Yes |
| SpeedFusion Hot Failover | Yes |
| SpeedFusion WAN Smoothing | Yes |
| Number of PepVPN SpeedFusion Peers | 2/5 |
| PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) | 80 Mbps / 60 Mbps |
| 802.1q VLANs Supported | 16 |
| Drop-In Mode | Yes |
| IP Passthrough | Yes |
| High Availability | Yes |
| WAN as LAN | Yes |
| Web Blocking | Yes |
| AC Adapter | AC Input 100V-240V DC Output 12V, 2A |
| Power Input | Terminal Block | DC 10V-30V, 2A |
| Power Consumption | 11W (nominal) , 13W (max.) |
| Dimensions | 5.0 x 4.2 x 1.4 inches | 125.7 x 107 x 35 mm |
| Weight | 0.93 pounds | 420 grams |
| Operating Temperature | –40° – 149°F | -40° – 65°C |
| Certifications | -FCC, CE, RoHS, E-Mark -EN 45545-2 Railway applications – fire protection -EN 61000 Electromagnetic Compatibility |
| Warranty | 1-Year Limited Warranty |
Peplink Slim 40G
*Our Recommended Antenna.
- 5-in-1 High performance antenna
- Ultra-wideband coverage from 600 to 6000 MHz supporting LTE & 5G
- 4×4 MIMO LTE/5G & GPS
- Slim low profile design to fit in any environment
- IP55 rating ideal for land mobile installations
- Multi mounting options for ease of installation
Peplink Mobility 40G
- 5-in-1 High performance antenna
- Ultra-wideband coverage from 600 to 6000 MHz supporting LTE & 5G
- 4×4 MIMO LTE/5G & GPS
- Durable and weather resistant IP68 rating (available in black or white)
- Ideal for static or marine implementation
- Multi mounting options for ease of installation
Poynting MIMO-4 4
- 4-in-1 High performance multi-frequency automotive antenna
- Ultra-wideband coverage from 617 to 6000 MHz for cellular
- 4×4 MIMO LTE/5G
- Robust and weather resistant antenna with an IP69K rating
- Ideal for transportation and marine implementation
- Multi mounting options for easy installation
The Pepwave HD1 Dome Pro provides a single cellular 5G modem in an IP67 enclosure that has a minimal profile on the rooftop or mast spreaders while providing maximum signal gain.
Most maritime deployments require a centrally placed router attached to strategically placed antennas. With the HD1 Dome, the antennas are placed in the same integrated enclosure as the cellular radios. This arrangement minimizes cable loss, giving you the best signal possible.
With the addition of the optional PEPXIM SIM injector, the Pepwave HD2 Dome can support up to 10 network SIM’s. Simply connect an Ethernet cable between the SIM injector and the HD1 Dome. The SIM Injector is capable of PoE output, so you don’t need to add another PoE switch to your deployment.
| Ethernet LAN Ports | 1 (GE) |
| Embedded 5G Modem | 1 |
| Cellular Data Rate | 5G: 3.4 Gbps / 900 Mbps |
| Redundant SIM Slots | Yes (( Mini-SIM (2FF)) |
| Wi-Fi WAN | Wi-Fi AP | Yes |
| Recommended Users | 1-150 |
| PepVPN | Yes |
| SpeedFusion Hot Failover | Yes |
| SpeedFusion WAN Smoothing | Yes |
| Number of PepVPN SpeedFusion Peers | 2/5! |
| PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) | 400 Mbps / 200 Mbps |
| 802.1q VLANs Supported | 16 |
| Drop-In Mode | Yes |
| IP Passthrough | Yes |
| High Availability | Yes |
| WAN as LAN | Yes |
| Web Blocking | Yes |
| AC Adapter | AC Input 100V-240V DC Output 12V, 2A |
| Power Input | Terminal Block | DC 10V-30V, 2A |
| Power Consumption | 20 W (max., without PoE output) |
| Dimensions | 4.33 inches (radius) x 4.53 inches (height) 110 mm (radius) x 115 mm (height) |
| Weight | 2.65 pounds | 1.2 kg |
| Operating Temperature | –40° – 149°F | -40° – 65°C |
| Certifications | -CE, RoHS, -EN 61373 Shock and Vibration Resistance -EN 50155 Railway Applications – Electronic Equipment used on Rolling Stock -EN 61000 Electromagnetic Compatibility |
| Warranty | 1-Year Limited Warranty |
Peplink SIM Injector Mini
*Recommended Accessory.
- Integrate up to 8 additional SIMs into your network
- easy access for swapping SIMs on the go
- Easy to power with either DC or POE 802.3at
Peplink SIM Injector
- Integrate up to 8 additional SIMs into your network
- easy access for swapping SIMs on the go
- 4x Gigabit ethernet with 802.3at POE+ out
The Pepwave HD2 Dome Pro provides dual cellular Bandwidth Bonding in an IP67 enclosure that has a minimal profile on the rooftop while providing maximum signal.
Most maritime deployments require a centrally placed router attached to strategically placed antennas. With the HD2 Dome, the antennas are placed in the same integrated enclosure as the cellular radios. This arrangement minimizes cable loss, giving you the best signal possible.
The HD2 Dome has a M35 screw mount, and only requires a single Ethernet cable to install. For wall or pole mounted deployments, the HD2 Dome comes with an Ethernet splitter and a mounting rack that provides a multitude of installation options.
With the addition of the optional PEPXIM SIM injector, the Pepwave HD2 Dome PRO can support up to 12 network SIM’s. Simply connect an Ethernet cable between the SIM injector and the HD2 Dome. The SIM Injector is capable of PoE output, so you don’t need to add another PoE switch to your deployment.
| Ethernet WAN Ports | 1 (GE) |
| Ethernet LAN Ports | 1 (2.5 GE) |
| Embedded 5G Modem | 2 |
| Cellular Data Rate | 5G: 3.4 Gbps / 900 Mbps |
| Redundant SIM Slots | Yes (( Mini-SIM (2FF)) |
| Wi-Fi WAN | Wi-Fi AP | Yes |
| Recommended Users | 1-150 |
| PepVPN | Yes |
| SpeedFusion Hot Failover | Yes |
| SpeedFusion WAN Smoothing | Yes |
| Number of PepVPN SpeedFusion Peers | 2/5! |
| PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) | 400 Mbps / 200 Mbps |
| 802.1q VLANs Supported | 16 |
| Drop-In Mode | Yes |
| IP Passthrough | Yes |
| High Availability | Yes |
| WAN as LAN | Yes |
| Web Blocking | Yes |
| AC Adapter | AC Input 100V-240V DC Output 12V, 2A |
| Power Input | Terminal Block | DC 10V-30V, 2A |
| Power Consumption | 24 W (max., without PoE output) |
| Dimensions | 5.12 inches (radius) x 4.79 inches (height) 130 mm (radius) x 122 mm (height) |
| Weight | 3.53 pounds | 1.6 kg |
| Operating Temperature | –40° – 149°F | -40° – 65°C |
| Certifications | -CE, RoHS -EN 61373 Shock and Vibration Resistance -EN 50155 Railway Applications – Electronic Equipment used on Rolling Stock -EN 61000 Electromagnetic Compatibility |
| Warranty | 1-Year Limited Warranty |
Peplink SIM Injector Mini
*Recommended Accessory.
- Integrate up to 8 additional SIMs into your network
- easy access for swapping SIMs on the go
- Easy to power with either DC or POE 802.3at
Peplink SIM Injector
- Integrate up to 8 additional SIMs into your network
- easy access for swapping SIMs on the go
- 4x Gigabit ethernet with 802.3at POE+ out

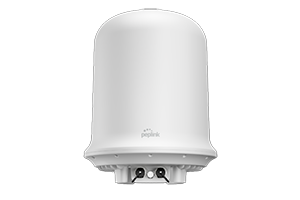

Introducing the Peplink DOME PRO LR, the ultimate marine router solution for high-performance connectivity. Designed to meet the demands of maritime environments, this flagship router delivers unparalleled reliability and speed for maritime communications.
Equipped with advanced features, the Peplink DOME PRO LR ensures seamless connectivity for vessels of all sizes. With its long-range capabilities, it extends the reach of maritime networks, keeping vessels connected even in remote locations. Whether it’s offshore operations or leisure cruising, this cutting-edge router provides robust and dependable connectivity.
Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6 2×2 MU-MIMO Wi-Fi WAN and/or AP
| Ethernet WAN Ports | 1 (GE) |
| Ethernet LAN Ports | 1 (2.5 GE) |
| Embedded 5G Modem | 2 |
| Cellular Data Rate | 5G: 3.4 Gbps / 900 Mbps |
| Redundant SIM Slots | Yes (( Mini-SIM (2FF)) |
| Wi-Fi WAN | Wi-Fi AP | Yes |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6 2×2 MU-MIMO Wi-Fi WAN and/or AP |
| Antenna | 8x Internal Long Range Optimized Cellular Antennas 2x Internal Wi-Fi Antennas 1x Internal GPS Antenna |
| Recommended Users | 50-150 |
| PepVPN | Yes |
| SpeedFusion Hot Failover | Yes |
| SpeedFusion WAN Smoothing | Yes |
| Number of PepVPN SpeedFusion Peers | 2/5! |
| PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES) | 400 Mbps / 200 Mbps |
| 802.1q VLANs Supported | 16 |
| Drop-In Mode | Yes |
| IP Passthrough | Yes |
| High Availability | Yes |
| WAN as LAN | Yes |
| Web Blocking | Yes |
| AC Adapter | AC Input 100V-240V DC Output 12V, 2A |
| Power Input | Terminal Block | DC 10V-30V, 2A |
| Power Consumption | 24 W (max., without PoE output) |
| Dimensions | 14.6 inches (diameter) x 18.8 inches (height) 370 mm (diameter) x 478.5 mm (height) |
| Weight | 14 pounds | 6.35 kg |
| Operating Temperature | –40° – 149°F | -40° – 65°C |
| Certifications | -FCC, CE, RoHS |
| Warranty | 1-Year Limited Warranty |
Peplink SIM Injector
*Our Recommended Accessory
- Integrate up to 8 additional SIMs into your network
- easy access for swapping SIMs on the go
- 4x Gigabit ethernet with 802.3at POE+ out
Peplink SIM Injector Mini
- Integrate up to 8 additional SIMs into your network
- easy access for swapping SIMs on the go
- Easy to power with either DC or POE 802.3at
